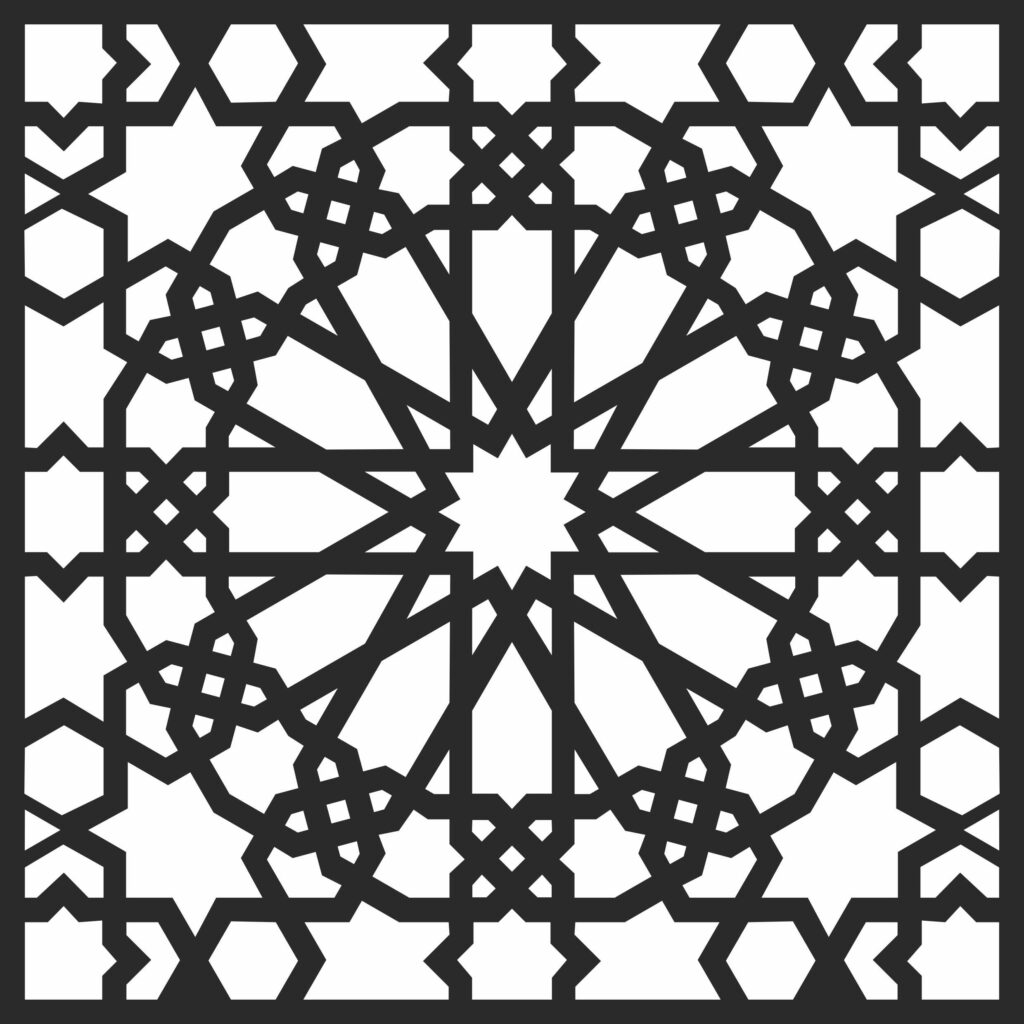

In the world of high-end interior design and architectural fabrication, geometric motifs serve as a bridge between ancient tradition and modern minimalism. The intricate pattern shown in Free Islamic is a prime example of a 12-fold symmetry design that is highly sought after for luxury commercial and residential projects.
As a specialist in technical design for CNC and laser-cutting projects, I understand that a “free” file is only valuable if it is production-ready. Many online resources provide “auto-traced” vectors that result in jagged edges and excessive nodes, which can damage your machine’s motors or result in a poor finish. The files provided here are manually refined to ensure the cleanest possible lines for industrial manufacturing.
The Technical Advantage of Free Islamic
When you are running a high-speed laser or a heavy-duty CNC router, the quality of your vector work directly impacts your bottom line. This design has been optimized to balance aesthetic complexity with structural integrity.
Available File Formats
We are providing this design in a comprehensive package to ensure compatibility across all major industry software:
- DXF (Drawing Exchange Format): The industry standard for AutoCAD, Vectric Aspire, and various CNC controller softwares.
- SVG (Scalable Vector Graphics): Ideal for modern laser cutters like Glowforge or web-based design applications.
- AI (Adobe Illustrator): Perfect for graphic designers who need to integrate this pattern into larger branding or interior layouts.
- CDR (CorelDraw): Widely used in the signage and engraving industry.
Industrial Applications in Modern Architecture
This specific pattern Free Islamic is versatile enough to be used across multiple materials and scales:
1. Custom Architectural Screens & Partitions
In modern open-plan offices or luxury homes, CNC-cut partitions are a popular way to divide space without blocking light. Using materials like 18mm MDF or high-density Birch Plywood, this pattern creates a stunning visual play of light and shadow.
2. Metal Fabrication & Exterior Cladding
For exterior projects, such as parking garage screens or decorative building facades, this design can be laser or plasma cut from aluminum or weathering steel. The interconnected lines provide the necessary rigidity to withstand wind loads while maintaining a delicate appearance.
3. CNC 3D Relief & Furniture Inlays
If you are working with 3-axis machining, this pattern can be used as a pocketing toolpath for furniture inlays or even as a base for a 3D relief carving in hardwoods.
Best Practices for Cutting This Pattern
To achieve the best results on your CNC or Laser machine, consider the following technical tips:
Material Selection
- Wood: For CNC routing, use a “Down-cut” spiral bit to prevent splintering on the top surface of the plywood.
- Acrylic: When laser cutting, ensure your air assist is at the correct pressure to prevent flaming and to keep the edges crystal clear.
- Metal: If using a plasma cutter, pay close attention to the “Lead-in” and “Lead-out” points to avoid scarring the geometric corners.
Scaling the Design
Because these are vector-based files, you can scale the design found in Free Islamic from a small 4-inch coaster to a 10-foot wall mural without any loss in resolution. However, always check your “minimum bridge width” to ensure the material doesn’t become too fragile at smaller scales.
Why We Offer Free Professional Designs
Our mission at dxffreefiles.com is to support the global maker community by providing high-quality, technical-grade resources. We believe that access to precision design files shouldn’t be a barrier to creativity. Whether you are a hobbyist in your garage or a professional shop manager in the USA, these files dxf ,svg, cdr, ai time.

Conclusion: Precision Meets Artistry
The geometric precision of the pattern in Free Islamic is more than just art—it is a feat of mathematical engineering. By downloading these files, you are ensuring that your next CNC or laser project meets the highest standards of professional fabrication.
External Resource: For more information on optimizing G-code for complex geometric patterns, visit the Official CNC Machining Standards website.
How to Use These Files:
- Download the ZIP folder containing all four formats.
- Import the DXF or SVG into your preferred CAM software (like Vectric Aspire or Fusion 360).
- Set Toolpaths: Choose your bit size or laser kerf compensation.
- Run a Test Cut: Always perform a test on scrap material first to verify scale and fit.
This post is part of our ongoing commitment to providing the best free CNC resources online. Stay tuned for more architectural patterns and technical design tips!
About The File
These designs are distributed for free. You can download and use it for personal or commercial purposes.
File Information
After download, you will get a zip file with dxf and images inside.
File format:
Size:
Software Support:
The file is available for instant download. After downloading, you will get a pdf, Dxf, eps, ai, artcam, file. The file is ready to cut and easy to modify. You can easily scale or modify files with any cad software. files can be opened with any cad software like AutoCAD, Artcam, Aspire, and Jdpaint.
Disclaimer
You can use this design unlimited times for your personal purpose. make commercial products using this design. If we found a violation of the license we will cancel your membership and restrict your access to this website by blocking your IP address.
Important
a computer-drawn 2d cad design. After purchase, we deliver the digital files only. We don’t take or deliver any physical products.
design is for CNC machines only.
If you don’t know how to use this design maybe this is not for you. We recommend you learn about CNC first.
any file download link is not working or the design is not the same as the picture, please contact us.
