Design files to make metal screen panels with CNC-based laser metal cutters. Cut files of these decorative abstract patterns can be downloaded for free.
Decorative metal screen panels are often used in architecture to divide areas. You can create quiet corners in residential or commercial areas using these architectural screens. The screen designs we have drawn for this project are in abstract style. This style is often used in modern architecture. Therefore, the materials you’ll choose for your panels should be in a modern style.
As examples of these materials, weathered steel, plywood, MDF, acrylic, and plastic materials can be counted. If your choice is a metal screen, you can choose aged metal or coated metal. In coating materials, matte-looking materials such as bronze will add a relaxing ambiance to the divided area. If you use shiny metal material, it will reflect in bright areas. This may cause discomfort in the environment. The right choice for cutting metal materials is CNC-based metal plasma or laser cutters. If your choice is wooden materials, the most accurate material choices will be flexible materials such as MDF and plywood. If you are going to use MDF, you may need to do additional painting and varnishing on the surface. MDF is very absorbent.
You can also find more designs on our website alinas.live
metal screen panels
Download
An uncoated mdf should not be used in a moisture-rich environment. Plywood, on the other hand, often has a coated surface and may not require additional painting varnishing. Acrylic material is mostly used in commercial areas. If you’ll prefer acrylic material, you can get support from an interior designer regarding color selection and panel placement. If you’ll prefer plastic in your decorative panels, it may be a great option to use Glow in dark paint plastic material for dimly lit spaces.

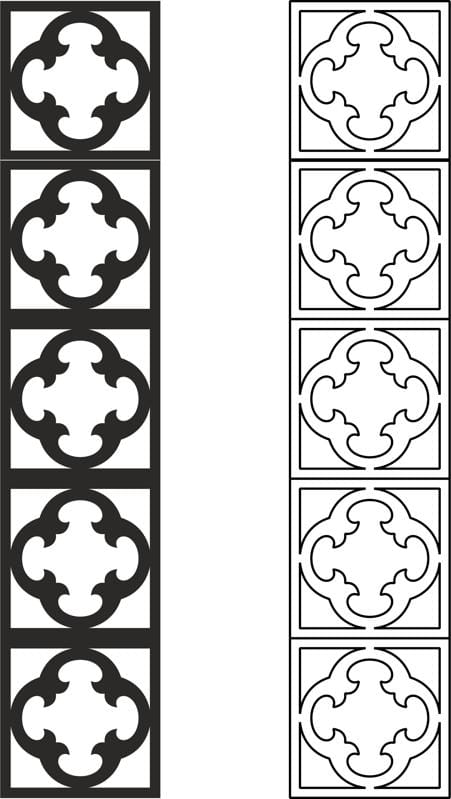

We published the pattern files of these decorative metal screen panels in eight different formats. Dxf and dwg files are in 2D CAD file formats. They are suitable for use in plasma, laser cutting machines, and CNC routers. You can open it in CAD software like Autocad and scale it to the dimensions you need.
metal screen panels
We created this website system because of our passion and not for profit. Maintaining the system with limited funding is very difficult. We look forward to receiving your support. If you feel my system is beneficial to you, please help us share this website with your friends. That will give us the incentive to do better. thank you!
About The File
These designs are distributed for free. You can download and use it for personal or commercial purposes.
File information
After downloading, you will get a zip file with dxf and images inside.
File format: STL
Size:
Software Support:
The file is available for instant download. After downloading, you will get a pdf, Dxf, eps, ai, artcam, file. The file is ready to cut and easy to modify. You can easily scale or modify files with any cad software. files can be opened with any cad software like AutoCAD, Artcam, Aspire, and Jdpaint.
Disclaimer
You can use this design unlimited times for your personal purpose. make commercial products using this design. If we found a violation of the license we will cancel your membership and restrict your access to this website by blocking your IP address.
Important
a computer-drawn 2d cad design. After purchase, we deliver the digital files only. We don’t take or deliver any physical products.
design is for CNC machines only.
If you don’t know how to use this design maybe this is not for you. We recommend you learn about CNC first click here.
If any file download link is not working or the design is not the same as the picture, please contact us.
